How to Attach a Handrail to a Newel Post

eHow may earn compensation through affiliate links in this story. Learn more about our affiliate and product review process here.

Things You'll Need

  • Tape measure

  • Pencil

  • Drill

  • 5/8-inch drill bit

  • ½-inch drill bit

  • 2 lag screws, #14

  • Screwdriver bit

  • 5/8-inch wood plugs

  • Wood glue

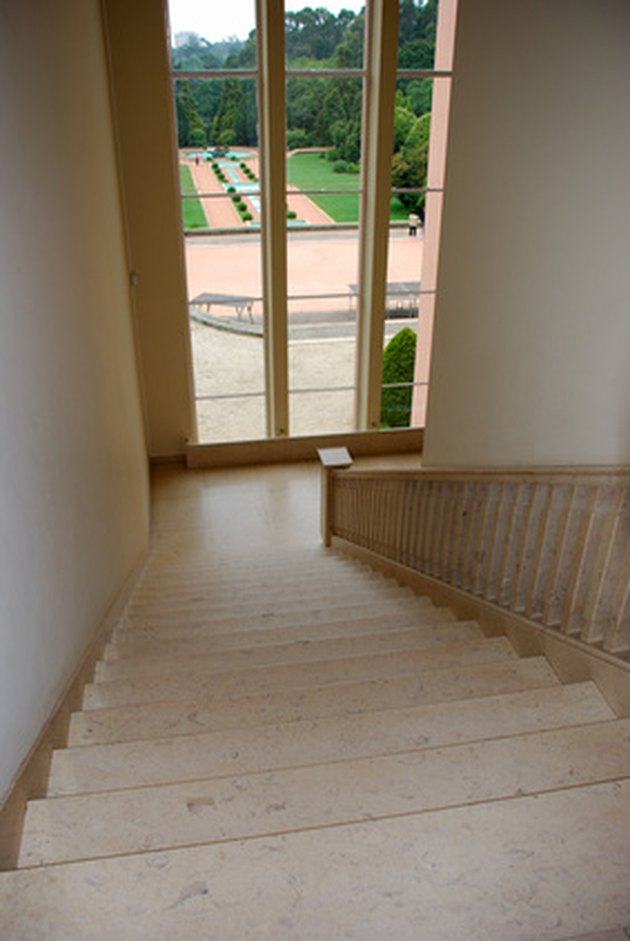

Handrails are attached to the top and bottom newel posts.

A handrail on a stair system usually terminates at a newel post. The newel post is secured into the floor or last stair in the staircase and at the top of the stairway. The installation is different for the top and bottom because of the angle of the handrail where it meets the newel post. The handrail should be in position for attaching.

Advertisement

Bottom

Step 1

Measure approximately 1 ½ inches from the bottom end of the hand rail and mark a spot in the center of the bottom of the handrail with a pencil.

Video of the Day

Step 2

Drill a 5/8-inch hole into the bottom of the handrail on an angle toward the newel post.

Step 3

Drill a ½-inch hole through the hole in the bottom of the handrail on the same angle into the newel post.

Step 4

Insert a #14 lag screw through the bottom hole in the handrail and into the newel post.

Advertisement

Step 5

Glue a 5/8-inch plug into the bottom of the handrail with wood glue to cover the screw head.

Top

Step 1

Measure up from the bottom of the newel post to the bottom of the handrail.

Advertisement

Step 2

One the side of the newel that is opposite the handrail, measure up the same distance and add ½ inch. Mark the location with a pencil.

Step 3

Use a 5/8-inch drill bit to drill a hole approximately halfway through the newel post.

Advertisement

Step 4

Place a ½ inch drill bit into the hole and continue drilling through the rest of the newel post an into the handrail.

Step 5

Insert a #14 lag screw through the hole in the newel post and into the handrail.

Step 6

Glue a 5/8-inch plug into the hole with wood glue in the newel post to cover the screw head.

Tip

Purchase plugs that match the wood species used for the newel post.
